Introduction
When operating with drilling machines or CNC setups, one vital issue that guarantees precision and balance is the drill chuck arbor. Often ignored, the arbor performs a important position in connecting the drill chuck to the machine spindle, offering a stable and dependable grip. Without the proper arbor, your drill chuck received’t feature efficaciously, and the machining technique may lack accuracy.
In this blog, we’ll provide an explanation for what a drill chuck arbor is, its uses, sorts, and advantages, in conjunction with some FAQs to help you select the proper one.

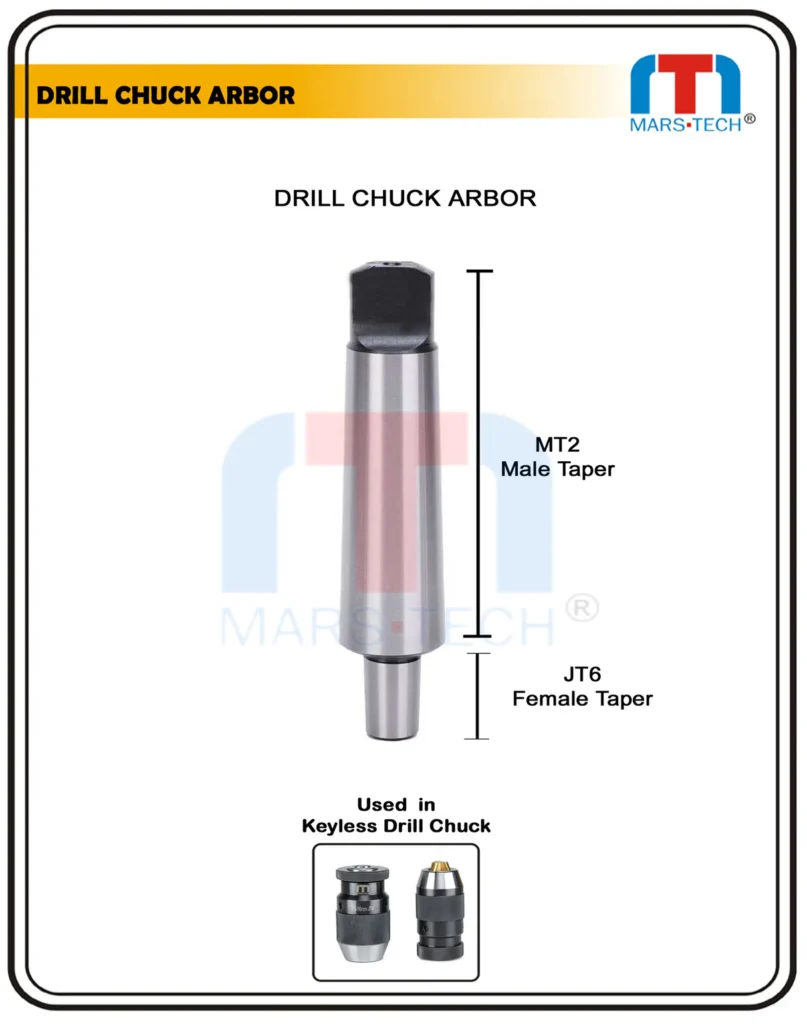

What is a Drill Chuck Arbor?
A drill chuck arbor is a connecting tool that attaches the drill chuck to the spindle of the device. It serves as an adapter among the chuck (that holds the drill bit) and the spindle (that powers the rotation).
- On one stop, it has a taper that suits into the machine spindle.
- On the opposite end, it suits into the drill chuck bore.
This guarantees a organization connection, prevents slipping, and permits green switch of torque during machining.
When Do You Need a Drill Chuck Arbor?
You need a drill chuck arbor in situations wherein:
- The drill chuck and spindle taper do not fit at once.
- You require extra help for stability at some point of high-speed drilling.
- You are running with machines like drill presses, milling machines, or lathes.
- Precision and accuracy are essential on your machining job.
Simply placed, without the arbor, the chuck can not be hooked up securely to the machine.
Types of Drill Chuck Arbors
Different machines and chucks require one-of-a-kind arbor sorts. Some not unusual ones encompass:
- Morse Taper (MT) Arbors
- Widely used in drill presses and lathes.
- Known for their self-holding taper layout.
- Jacobs Taper (JT) Arbors
- Common for drill chucks.
- Provides robust grip and clean mounting.
- B16, B18, and Other Metric Tapers
- Common in European and Asian machines.
- Designed for excessive precision.
- Custom/Adapter Arbors
- Designed to in shape unique chuck-to-spindle requirements.
How to Use a Drill Chuck Arbor?
Using a drill chuck arbor is simple:
- Check Compatibility – Ensure the taper of the spindle suits the arbor.
- Insert Arbor into Spindle – Gently tap it in area for a secure fit.
- Mount the Drill Chuck – Attach the chuck onto the arbor’s different cease.
- Tighten Properly – Ensure there is no play or wobble.
- Run a Test Spin – Check for accuracy and smooth rotation before starting work.
Benefits of Using Drill Chuck Arbor
- Accuracy – Maintains proper alignment among chuck and spindle.
- Stability – Prevents vibration at some point of excessive-pace drilling.
- Versatility – Allows you to use specific chucks on the same spindle.
- Durability – High-first-class metallic production ensures long existence.
- Productivity – Smooth transfer of torque leads to efficient drilling.
Choosing the Right Drill Chuck Arbor
When shopping for a drill chuck arbor, remember the following factors:
- Taper Size – Match it along with your machine spindle.
- Chuck Type – Ensure compatibility with Jacobs or Morse taper.
- Material Quality – Go for hardened metallic for long-time period use.
- Machine Type – Drill press, milling device, or CNC setup.
FAQs on Drill Chuck Arbor
Q1. What is the primary feature of a drill chuck arbor?
A drill chuck arbor connects the chuck to the spindle, ensuring stability and precision.
Q2. Can I use any arbor for my drill chuck?
No, you should pick the arbor that matches both the spindle taper and chuck bore length.
Q3. How do I cast off a drill chuck arbor?
You can use a wedge or drift device to softly knock it out from the spindle.
Q4. Are drill chuck arbors ordinary?
They are not common, but there are numerous sizes to be had to in shape most machines.
Q5. Where can I buy drill chuck arbors?
High-quality drill chuck arbors are available on line at depended on CNC and power device providers like Jaibros.
