In the ultra-high-speed, high-precision era of modern manufacturing, inserts made of carbide are indispensable tools for nearly every metal-cutting process. If you’re turning, milling, or drilling the cutting tools, these reusable tools ensure constant performance, high productivity, and a shorter downtime.
This comprehensive guide will go over the various types, advantages of materials, applications, and the best selection tips for carbide inserts to assist you in getting the most from your investment in tools.
What Are Carbide Inserts?

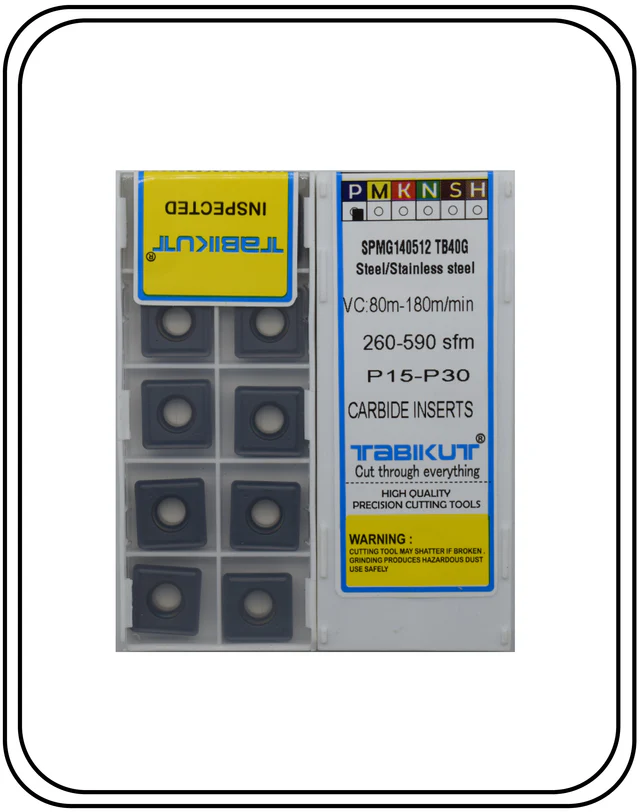

Carbide inserts are tiny, interchangeable cutting tools constructed from tungsten carbide, which is a hard and wear-resistant substance that is formed by combining carbon and tungsten at high pressure. The inserts are positioned on holders for tools to perform a variety of cutting operations on metal.
In contrast to traditional cutting tools, inserts are indexable, which means they can have several cutting edges. When one edge wears away, inserts can be rotated for a different edge or replaced without needing to replace the whole device.
Benefits of Carbide Inserts
Moving from traditional HSS tools to carbide inserts has many significant advantages:
1. Longer Tool Life
Carbide is more durable than HSS, keeping its sharpness at higher temperatures and providing a longer service life.
2. Higher Cutting Speeds
Carbide inserts are able to handle higher feed rates and RPMs and allow for faster production times.
3. Precision and Surface Finish
They offer excellent dimensional precision and smoother surfaces, even when working with hard materials.
4. Reduced Tool Changes
Indexable inserts make it easy to make changes to the machine to reduce downtime and increase efficiency.
5. Cost Efficiency
While they’re more expensive in the beginning, the carbide inserts reduce long-term costs due to decreasing wear on tools as well as reducing rework and speeding up the process.
Common Types of Carbide Inserts
There are a variety of designs and shapes of carbide inserts, each made for a specific purpose:
1. Turning Inserts
Lathes are used for operations. The most common shapes are:
- CNMG (80° diamond)
- TNMG (triangle)
- VNMG (35° diamond)
2. Milling Inserts
Mounted on end mills or face mills for contoured or flat milling.
3. Drilling Inserts
Utilized in indexable drills that are indexable. They usually have at least two cutting edges that are designed to create holes.
4. Grooving and Parting Inserts
Narrow inserts for precise grooves or for separating parts.
5. Threading Inserts
Used for internal and external threading on lathes.
Insert Geometry and Its Role
The geometry of the insert determines how the tool interacts with the material. It can affect the control of the chip’s surface finish, the strength of the tool, and the overall performance.
Key Geometrical Elements:
- Rake Angle Positive rakes cut more evenly and are ideal for materials that are soft. A rake with a negative angle offers durability for more durable materials.
- Nose Radius A larger radius improves finish while increasing cutting force.
- Chipbreaker design helps break chips and manage heat.
Carbide Grades and Coatings
Carbide inserts are offered in a variety of grades and coatings to fit different materials and procedures.
1. Grades
- P-Grade (Steel) P-Grade (Steel): Strong and wear-resistant.
- K-Grade (Cast Iron): Harder for conditions that are abrasive.
- M-grade (stainless steel) is a blend of durability and wear resistance.
- S-grade (superalloys) are heat-resistant materials such as Inconel or titanium.
2. Coatings
- TiN (titanium nitride) improves wear resistance.
- TiAlN (Titanium Aluminum Nitride) TiAlN is a heat-resistant material for cutting at high speeds.
- Al₂O₃ (Aluminum Oxide): Provides thermal insulation for heavy-duty machining.
Applications of Carbide Inserts
Carbide inserts are employed in many machines and industries:
Automotive
- Engine block machining
- Transmission components
- Parts for brakes
Aerospace
- Cutting of Inconel and titanium
- Structural components
Die & Mold
- Tool steel cutting
- Complex geometries
Oil & Gas
- Valve and pipe machine
- high-strength alloy turning
General Engineering
- Multi-material CNC operations
- Mass production components
How to Select the Right Carbide Insert
Selecting the right carbide insert is crucial to maximizing performance. Here are some things to think about:
1. Workpiece Material
- Use inserts made of P-grade steel.
- K-grade is a cast iron grade.
- M-grade is a stainless steel grade.
- S-grade for cobalt or nickel alloys.
2. Type of Operation
- Make use of positive rake inserts to achieve light finishing.
- Use stronger negative rakes for roughing.
3. Machine Stability
- The more rigid machines can employ the most aggressive geometries.
- Setups that are less stable may require inserts with less cutting force.
4. Surface Finish Requirements
- Select a wider nose radius to get smoother finishes.
- Use fine chip breakers to get the least burrs.
Common Issues and Solutions
| Problem | Likely Cause | Solution |
| Insert Breakage | A too high feed rate Vibration, too high feed rate | Reduce feed, check machine rigidity |
| Poor Surface Finish | Worn insert, large nose radius | Replace insert, reduce radius |
| Built-Up Edge (BUE) | Aluminum cutting without coating | Use a polished, uncoated insert |
| Short Tool Life | Poor quality, bad supply of coolant | Find the insert that matches material and use coolant |
Maintenance and Best Practices
- Always ensure that you use the right torque when tightening screws for inserts.
- Inspect the seating areas of the insert for wear or debris.
- Check edges and index before wearing excessively.
- Use air blast or coolant to eliminate heat and chip control.
- Beware of mixing brands of inserts since tolerances may differ.
Carbide Inserts against HSS Tools
| Feature | Carbide Inserts | HSS Tools |
| Hardness | Very High | Medium |
| Cutting Speed | High | Low |
| Tool Life | Long | Short |
| Cost | Lower initial cost, but lower long-term | Low-initiative |
| Replaceability | Indexable | Requires a regrinding |
Innovations in Carbide Insert Technology
Modern manufacturing requires continuous improvement, and the carbide insert technology is keeping up with the times:
- Smart Inserts: Chips embedded for monitoring the life of tools.
- 3D-printed tool holders for customized coolant routes.
- Nano Coatings: To improve performance of superalloys.
- Multi-layered Grading Combines toughness and hardness in one piece of paper.
Conclusion
Carbide inserts are now the foundation of accurate, efficient, and cost-effective metal cutting. Their capability to work at high speeds and produce constant results makes them essential in the modern production environment.
By understanding the types of inserts and geometries, coatings, and compatibility with materials, you can make informed decisions that will increase
