In the field of precision machining and CNC operations, ER collet chucks rank amongst the most flexible and efficient tool-holding systems. From metals to wood to plastics, ER collet chucks clamped with extraordinary clamping force and provide high concentricity for a variety of tool diameters in a compact and user-friendly way.
🔩 What is an ER Collet Chuck?

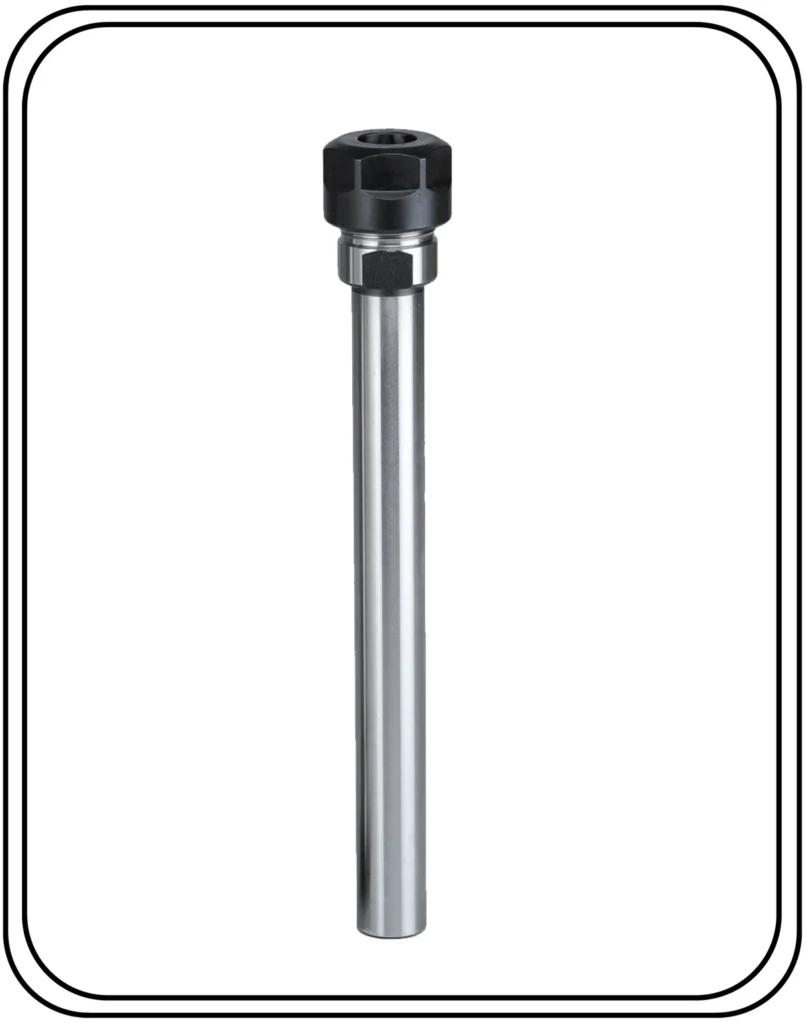

An ER collet chuck uses ER collets to hold round tools like drills, end mills, taps, and reamers on a CNC or milling machine. The name is derived from the “Elastic Reversible” collet design from Rego-Fix. ER chucks are known for their versatility in gripping range and precision.
The collet is placed in the nut, which is then inserted in the chuck body. When tightening it, the collet will compress evenly and securely around the tool shank.
⚙️ Key Features of ER Collet Chucks
Wide Clamping Range
Each collet can grip a range of tool diameters (usually 1 mm difference), allowing for fewer collets per range.
High Concentricity
ER chucks provide runout accuracy typically under 0.01 mm, essential for high-precision work.
Excellent Gripping Power
The 16-segment design offers a 360-degree grip, minimizing vibration and slippage during high-speed machining.
Versatile Compatibility
Available in sizes ER8 to ER50, and suitable for various shanks and spindle tapers like BT, HSK, CAT, and ISO.
Cost-Effective
Due to their reusability, long life, and standardization, ER systems provide high value for money.
🛠️ Common Applications
CNC Milling
Drilling
Reaming
Tapping
Engraving
Wood and composite machining
🧰 Tips for Using ER Collet Chucks
First, insert the collet into the nut and then place the assembly into the chuck.
Ensure cleanliness and dryness of both the collet and tool shank before installation.
Use a torque wrench for proper and even tightening.
Do not over-tighten, as this would cause deformation to the collet.
Regularly examine your collets for cracks and wear.
🧩 Choosing the Right ER Collet Chuck
In selecting an ER collet chuck, consider:
Shank type compatibility (BT30, HSK63, R8, etc).
ER series size (ER11, ER16, ER32, etc).
Maximum RPM rating.
Runout specification.
Coolant ootions (internal or external).
Premium features in ER collet chucks include anti-pullout technology, balanced construction for high-speed machining, and surface coatings for increased corrosion resistance.
📦 Jaibros Recommends
If you’re looking for a reliable supplier, Jaibros has a premium range of ER collet chucks in various sizes and configurations. Ground in hogging condition to close tolerances for increased precision, heat-treated for durability, and balanced for high-speed operation, our chucks perform reliably and excellently whatever the application.
❓FAQ – ER Collet Chuck
Q1. What does ER stand for in ER collet?
A: ER stands for “Elastic Reversible’’ which means it has flexible gripping range and symmetric design.
Q2. Can I use coolant through ER collet chucks?
A: Yes, many ER collet chucks are coolant-compatible. Make sure to check if your holder is sealed or has coolant ports.
Q3. What’s the normal runout of an ER collet chuck?
A: In general, ER collet chucks have runout below 0.01 mm. In the case of high Precision types, the runout can be even lesser.
Q4. How do I maintain ER collet chucks?
A: Clean all components after use, check for rust or wear, and store them in a dry, dust-free area.
Q5. Can ER collet chucks be used for tapping?
A: Yes, but for rigid tapping, you will need a specific ER chuck designed for this purpose, which can perform axial compensation or torque control.
🔚 Conclusion
In any machining environment, ER collet chucks are a must, and deservedly so: their combination of accuracy, versatility, and affordability makes them indispensable for both professionals and enthusiasts.
Elevate your workshop’s tool holding capacity with premium ER collet chucks from Jaibros for maximum output with minimum error.
