What is a collet chuck? A Complete Guide for Machinists and Engineers
Precision is the most important aspect of the machining. If you’re working on a CNC machine or a manual lathe, the tool-holding system plays a vital part in ensuring accuracy, speed, and safety. One tool-holding system that is notable for its sturdiness and precision is the collet chuck.
In this article we’ll go over everything you should learn about collet chucks, including the definition of what they do, how they operate with their various types, the benefits, and best practices to use.
1. What is a collet chuck?

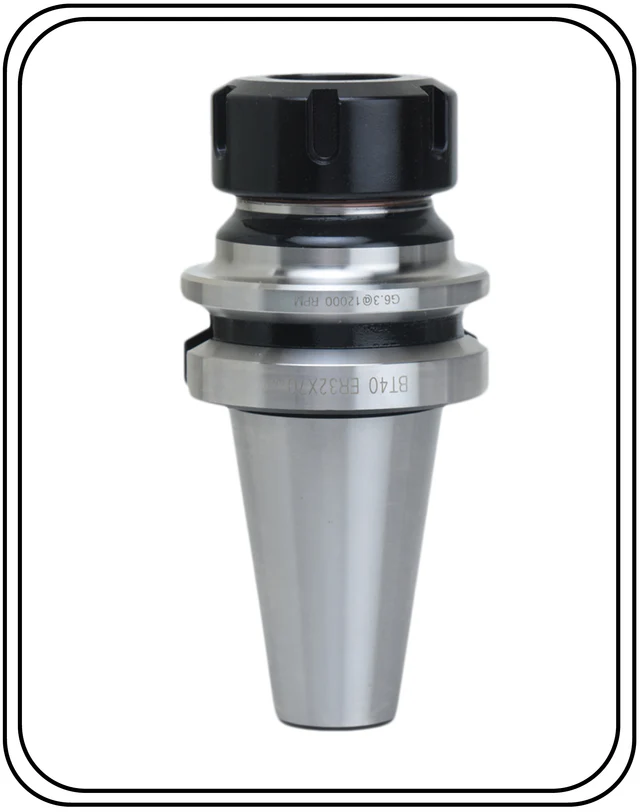

A collet chuck is a kind of tool holder utilized for machining to securely hold an object or cutting instrument. As opposed to jaw chucks, which hold the workpiece with independent jaws, collet chucks utilize the cylindrical sleeve (called a collet), which expands to hold the workpiece or tool with uniform pressure.
Collet chucks are extensively employed in CNC machines, milling machines, and drilling machines when precision and low runout are required. They are ideal for jobs that require stability, repeatability, and grip.
2. Components of a Collet Chuck
A typical collet chuck system consists of three major components:
- Collet: A flexible sleeve that has a conical exterior surface and a cylindrical internal bore designed to hold workpieces or tools that are of specific sizes.
- Chuck Body: The main holder that houses the collet.
- Clamping Mechanism or Nut: The collet is tightened, causing it to expand and hold the tool.
3. How Does a Collet Chuck Work?
The mechanism that operates the collet chuck is quite simple. As the nut tightens, it presses the collet to a seat that is tapered inside the body of the chuck. When the collet is pushed towards the inside, it grasps the workpiece or tool by applying equal pressure across the circumference.
This pressure uniformity results in
- High precision
- Reduced vibration
- A longer life for your tool.
- Small runout (misalignment)
4. Types of Collet Chucks
There are a variety of collet chucks that are available based on the application and machine:
ER Collet Chucks
- Most often employed for CNC milling and drilling.
- They are renowned for their flexibility and large clamping range.
- Available in a variety of sizes, including ER8 and ER16. Also available are ER32, ER40, and ER40.
5C Collet Chucks
- Usually used in lathes for workholding.
- Ideal to hold round stock.
- It is known for its rapid changes and high concentration.
R8 Collet Chucks
- A popular choice for manual milling machines.
- Limits to specific sizes of tools.
- Simple to use and affordable.
TG and DA Collet Chucks
- This machine is designed for high-speed machining and heavy-duty milling.
- Strong clamping forces, but limited tooling options.
5. Applications of Collet Chucks
Collet chucks can be found in many different applications in the world of manufacturing and machining:
- CNC Machining Perfect for high-precision and high-speed processes.
- Milling: Holding end mills, drills, reamers, and other tools.
- Turning or greasing small-diameter pieces or stock in round shape.
- Tapping and Drilling: Ensures stability and less wear on the tool.
In general the majority of cases, collet chucks are used for applications that require high RPM and tight tolerances.
6. Benefits of Using a Collet Chuck
Why do collet chucks have such a high demand in modern machine-making?
1. High Precision
- It has better concentricity when compared to jaw chucks.
- Aids in tightening tolerances.
2. Superior Grip
- The 360° grip is designed to reduce vibrations and tool slippage.
- Performance is better for small-diameter instruments.
3. Fast Tool Changes
- It is simple and quick to load/unload tools.
- Improves overall productivity.
4. Versatility
- It can hold a variety of workpieces and tools.
- A few ER collets can also clamp hex stock or square stock.
5. Minimal Runout
- Important for fine finishes on surfaces and less wear on tools.
7. Limitations of Collet Chucks
Despite their benefits, they have some limitations:
- Clamping Limitations: Each collet can only hold tools within a limited dimension range (usually ±0.5 millimeters).
- Not suited for heavy cuts: Might not provide the same strength of grip as chucks that are shrink-fit or hydraulic used in high-end applications.
- Requires Maintenance Dust and dirt could easily decrease the effectiveness of clamping.
8. Choosing the Right Collet Chuck
When deciding on a collet chuck, take into consideration the following aspects:
- Machine Compatibility: Ensure it fits the spindle taper of your machine (BT, HSK, BT, CAT, etc.).
- Application Type: Precision work vs. cutting heavy.
- Tool Size: Match the collet range to the tool sizes.
- Speed and torque requirements: Certain collets are best suited for high-speed rotation, while others are better for torque.
9. Maintenance and Care Tips
To ensure the efficiency and longevity of your collet chuck:
- Clean regularly: Remove chips, coolant, and dirt after each use.
- Inspect for wear: Replace worn collets or nuts as soon as possible.
- Utilize Torque Wrenches Overtightening may damage the collet as well as the tool.
- Lubricate Threads Use a light grease to stop galling and ensure that the threads are tight and smooth.
10. Collet Chucks. Other Tool Holders
| Feature | Collet Chuck | Jaw Chuck | Hydraulic Chuck |
| Precision | High | Medium | Very High |
| Clamping Force | Medium | High | Very High |
| Tool Change Speed | Fast | Slow | Medium |
| Suitable for Small Tools | Yes | No | Yes |
| Runout | Low | High | Very Low |
| Cost | Low-Medium | Low | High |
Conclusion
The collet chuck is an essential component of modern machining that provides precision as well as flexibility and cost-effectiveness. While it might not be the best choice for every task, however, it remains a top option for high-speed, precise manufacturing tasks. No matter if you’re engaged in CNC tools drilling, milling, or turning, investing in a top-quality collet chuck can greatly improve the productivity of your machine and also improve the quality of the machining.
